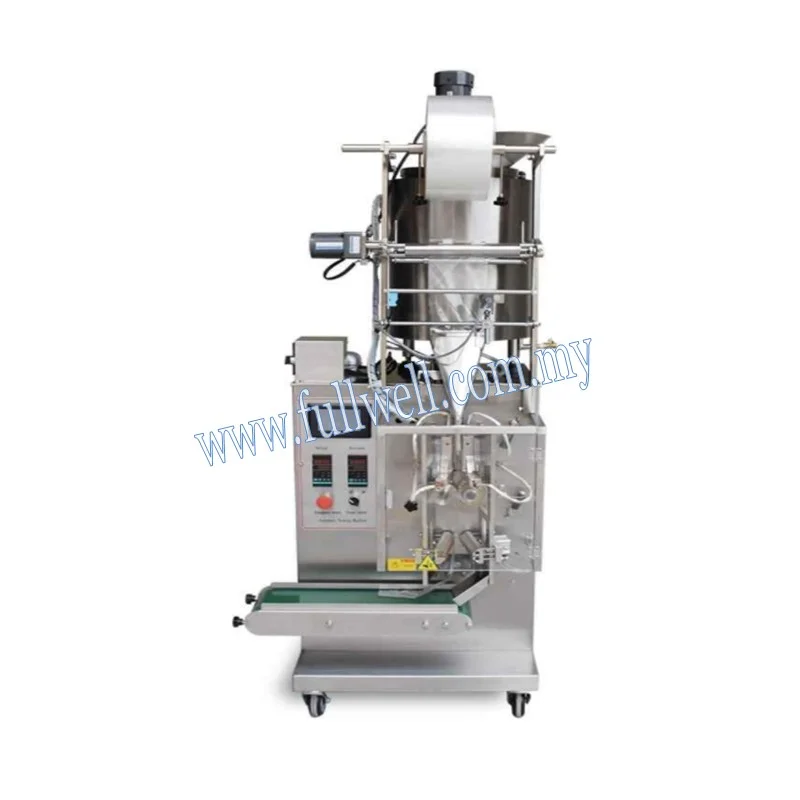

LIQUID PACKING MACHINE (3 SIDE SEAL) – CE-50/VFP

Looking for Enquiry? Ask for a quotation now and let us serve you!

Features

Working Process:
The machine pull laminate packaging film to the pouch forming devices, and go through the vertical sealing plate, in the meanwhile, the dosing device dose the product into the pouch, then will do the horizontal sealing and cutting off.

  1. Automatically complete all tasks such as bag making, filling, sealing, cutting, counting, printing production date and batch number (optional).
  2. The whole machine (contact material, body) 304 stainless steel, Chinese display control system, stainless steel cabinet, only need to set the required parameters (filling amount, bag length, etc.) in the displayable setting unit, and the control system is automatically optimized Match each action to cooperate.
  3. Controlled by stepping motor, the system has high accuracy, and the bag length can be changed without adjusting other parts, and it is accurate.
  4. When packaging color-coded packaging materials, a complete trademark pattern can be obtained; the bag is flat and has good edges.
  5. Stepless adjustment of speed and bag length: packaging speed and bag length can be steplessly adjusted within the rated range, no need to replace parts;
  6. The design adopts a unique embedded seal, an enhanced heat-sealing mechanism, and an intelligent temperature controller for temperature control. It has a good thermal balance and adapts to various packaging materials. It has good performance, low noise, clear seal lines, and strong sealing;
  7. According to the needs of users, the in-line cutting and pattern cutting can be realized by changing the cutter, so that the cutter is stable and reliable when cutting the bag without jamming; the operation is simple.

Video

Specification :

ModelCE-50/VFP
Filling Range5-20gram
Bag length50-200mm
Bag width50-150
Film thickness0.04-0.07mm
Capacity15-40bag/min
Dimension970*680*1950mm
Weight300kg
Voltage220v 2.2kw
