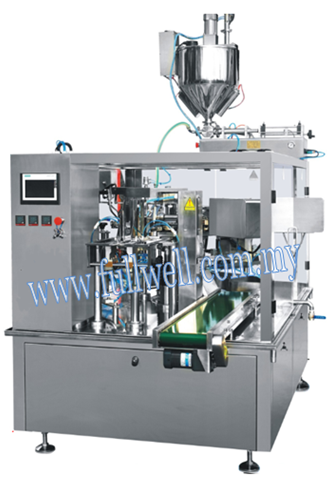

BAG GIVEN PACKING MACHINE – CE-200D/ZC

Looking for Enquiry? Ask for a quotation now and let us serve you!

Features

APPLICATION:

  1. With intelligent weighing and packing system, accurate measurement
  2. High speed, stable operation, low defective rate, low noise
  3. Using #304 stainless steel material for food filling.
  4. All clamps can be adjusted by PLC system, no need to adjust each station manually when changing different size bags.
  5. Suitable for food industry, but also for medical, chemical, commodity, tits industries, wide range of application.

TECHNICAL PARAMETER:

ModelCE-200D/ZC
BrandFULLWELL
Packing speed16-50 bags/min (Depends on packing material & bag type)
Packing bag sizeBag width: 80-200mm
Bag length: 100-350mm
Packing weight30g-3000g (General range)
Air consumption≤0.6m³/min
Voltage415V, 3 Phase
Total power2.3kw
Dimension (L x W x H)4500 x 2820 x 3700mm
Gross weight2600kg (whole set)
Precision≤ ±1%
