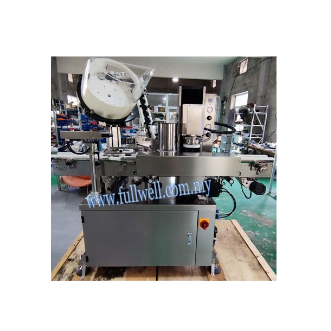

This machine is rearched and developed by our company with years of experience,it is unique in domestic.Integrated automatically cap arranging with covering.vacuum capping.Adopted manual vacuum pump to achieve high vacuum.With the functions of no bottie no covering. Alarming when no caps are available,Enjoyed high automation the main pneumatic and electric parts are from world famous brands.With stable and relialble performance.It is widely used for vacuum capping of the Glass Jars with iron caps in the industries of canned food,beverage,seasoning,health care products etc. Integrated automatically cap arranging with covering and vacuum capping ,with high automation.Adoptde vacuum pump to achieve high vacuum.Capping torsion and vacuum degree can be set as required.Suitable for different shapes and sizes bottles by changing few components.The main pneumatic and electric parts are from world famous brands to ensure stable,reliable and durable performance.
Technical Parameters:
Model No | CE-5131/QDX |
Voltage | 220V, 50/60Hz, Single phase |
Power | 1.5 kw |
Air pressure | 0.6 – 0.8 mpa |
Air consumption | <0.6m3/min |
Capping diameter | 30 – 85 mm |
Bottle height | 60 – 260 mm |
Bottle diameter | 40 – 110 mm (Can be customized) |
Capping speed | 30 – 35 bottles/min |
Machine size | 2000 x 960 x 1700 mm |
Weight | 460 Kg |
