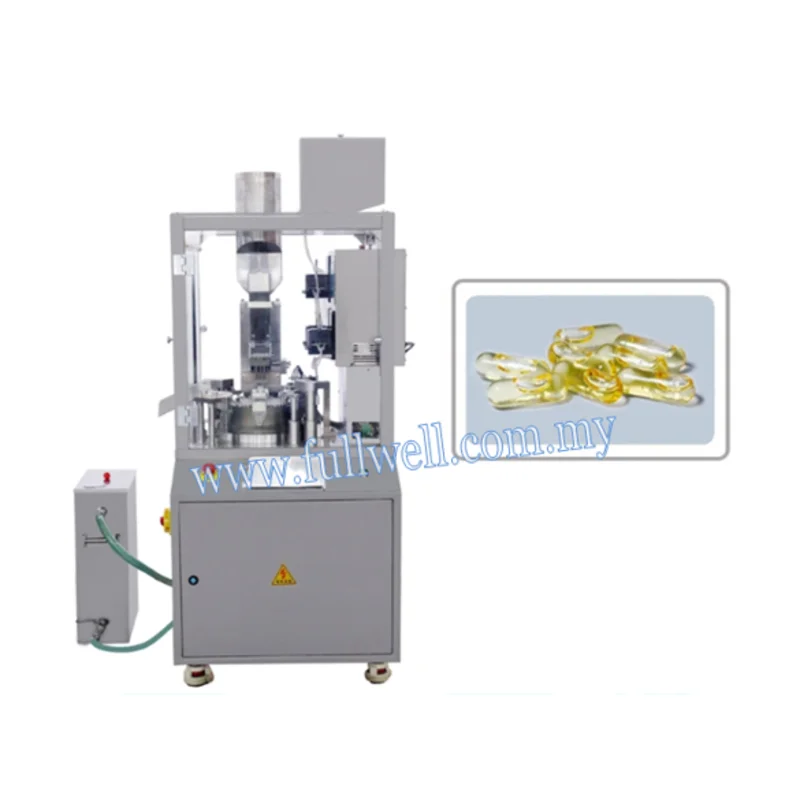

CAPSULE FILLING MACHINE (LIQIUD TYPE) – CE-260/JNCT

Looking for Enquiry? Ask for a quotation now and let us serve you!

Features

Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill, liquid),also can be used to fill vitamin, foodstuff and animal drug, etc.

ItemsCapsule Filling Machine – Liquid Type
Weight900kg
Overall size1020×860×1970mm
Motor power5.75kw
PowerAC 220V/380V; 50Hz/60Hz
Three-phase four-wire AC 380V;50Hz
Max Capacity260pcs/minute
Capsule size00#~5#
Supro/safefy capsule size:A~E
Load difference≥99.5%
Noise≤75dBA
Filling amount differenceLiquid: above 300mg ≤ ±3%
Compressed air0.06m3/min 0.3Mpa
Water source requirementThe water recycle vacuum pump is equipped with a water tank for recycle using, and can also be connected to an external water source.
Vacuum degree-0.02~-0.06 MPa
Water flow250L/h
Inlet pipe inner diameter20mm
Drain pipe inner diameter27mm
Working temperature21℃±3℃
Working plant height requirementManual materials load ≥2.6m,
Automatic materials vacuum convey≥2.8m
Working environment relative humidity40~55%
Exhaust volume300m3/h
Control SystemVariable frequency stepless speed regulation, PLC control
