PRODUCT STRUCTURE:

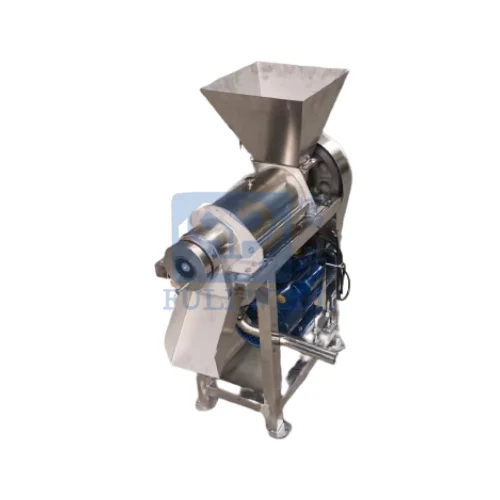

It is composed of front support, feed hopper, spiral, filter screen, juicer, rear support, slag trough and other parts. The left end of the spiral spindle is supported in the rolling bearing housing, and the right end is supported in the handwheel bearing housing. The electric motor drives the spiral through a pair of V-belt pulleys to work.
WORKING PRINCIPLE:
The main component of this equipment is a screw. The bottom diameter of the screw gradually increases along the slag outlet direction and the pitch decreases. When the material is pushed by the screw, the volume of the screw cavity is reduced, forming a squeeze of the material.
The direction of rotation of the screw spindle is clockwise when viewed from the feed hopper to the slag trough. The raw materials are added to the hopper and pressed by the screw. The squeezed juice flows into the juicer at the bottom through the filter, while the waste is discharged through the gap formed between the screw and the conical part of the pressure regulating head. The movement of the indenter along the axial direction can adjust the size of the gap. When transferring the handwheel bearing seat clockwise by hand (looking from the slag outlet of the equipment to the hopper), the pressure regulating head is turned to the left, and the gap is reduced, otherwise, the gap becomes larger. Changing the size of the gap, that is, adjusting the resistance of the slag, can change the juice yield, but if the gap is too small, under strong squeezing, part of the slag particles will be squeezed out through the filter together with the juice, although the juice output increases, but The quality of the juice is relatively low, and the size of the gap should be determined by the user’s specific process requirements.
TECHNICAL PARAMETER:
Model | CE-500/DJJ |
Brand | FULLWELL |
Power | 1.5KW |
Voltage | 220V/380V |
Capacity | 300-500 kg/h |
Dimension | 780×380×800mm |
Weight | 75kg |
