CE SERIES PULVERIZER (MIRCO FINE) – NEW – CE-15/WFSJ

Looking for Enquiry? Ask for a quotation now and let us serve you!

Features

Application

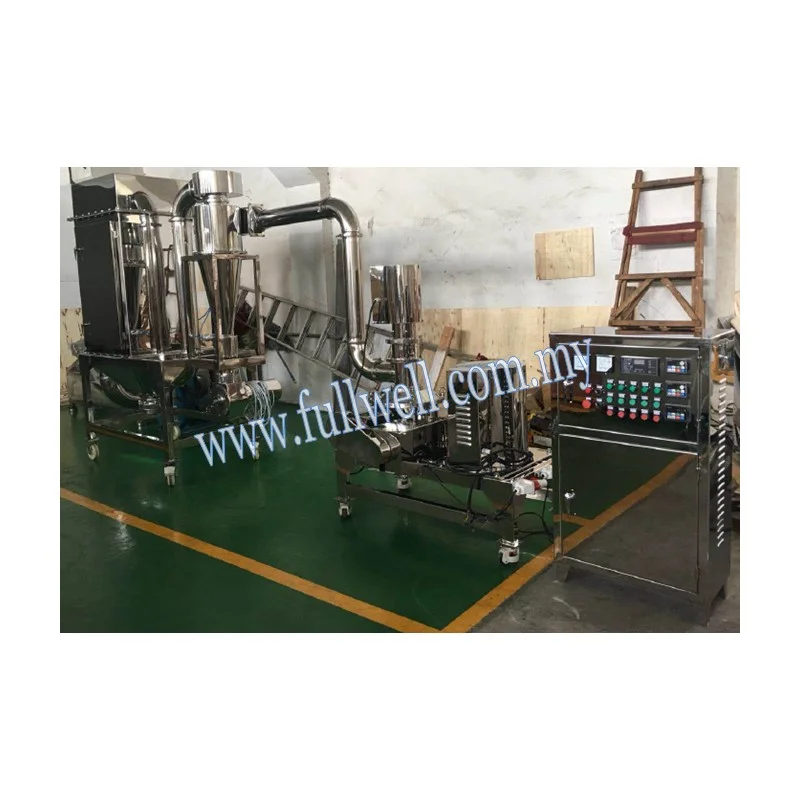

The machine is composed of main motor, auxiliary motor and electrical control cabinet with the capabilities of winnowing, non-sieve or mesh equality of granule size and continuousness processing, etc. It meets the international advanced level and is suitable for the material grinding by the trade of and foodstuff etc.

Working Method

Raw material is delivered to the grinding chamber via hopper by spiral feeder, Ind is cut and sheared by the high speed cutters, then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking. The dust is collected and recycled via cloth bag or filter of dust absorption box. There is no dust flying during production, so as to improve the utilization and crease the production cost.

Technical Specification

Model	CE-15/WFSJ	CE-20/WFSJ	CE-30/WFSJ	CE-60/WFSJ
Capacity (Kg/h)	20-150	50-300	70-600	100-800
Size of input granules (mm)	<10	<12	<15	<15
Size of output granules (Mesh)	20-320	20-320	20-320	20-320
Grinding motor (Kw)	11	15	30	75
Classification motor (Kw) (With Inverter)	2.2	3	7.5	11
Fan – Motor (Kw)	5.5	7.5	15	37
Feeding motor (Kw) (With Inverter)	0.37	0.55	0.75	2.2
Discharge motor (Kw)	0.75	0.75	1.1	1.5
Main running speed (R/Min)	3600	3000	3000	2800
Overall size – LxWxH (mm)	4200 × 1200 × 2700	4500 × 1250 × 2900	6600 × 1300 × 3900	7500 × 2300 × 4530
Weight (Kg)	1200	1600	2500	3600
