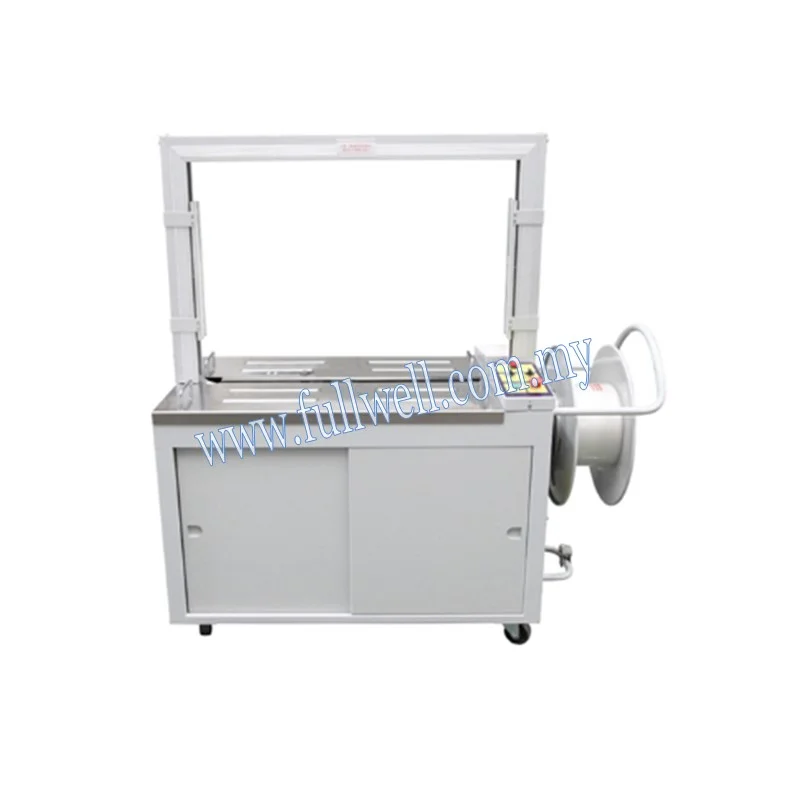

FULLY-AUTO STRAPPING MACHINE - CE-8060/KZJ

Looking for Enquiry? Ask for a quotation now and let us serve you!

Features

DESCRIPTION:

  1. CE series High-table Automatic strapping machine is suitable for general objects
  2. CE series is ideally suited for general light products.
  3. CE High table Automatic strapping machine can be used in production line of which objects differ in size and irregular in shape, and it can achieve unmanned strapping together with or without power conveyor.
  4. Can achieve unmanned strapping together with power conveyor.
  5. Power belt tabletop and access transmission mechanism are adopted, with easy maintenance.

FEATURES:

  1. Adopt film, durable, efficient mechanism as main body.
  2. Adopt human-machine interface, and fully digital manipulation to ensure easy size changeover and stable running.
  3. Due to special design of strap feeding and withdrawal track, more straps are applicable and packing cost is lowered greatly
  4. Oil-free maintenance, firm strapping, high speed and long use life.

V

TECHNICAL PARAMETER:

ModelCE-8060/KZJ
Voltage (V/Hz)AC415 / 50
Power (W)1000
Max strapping size (W x H) mm800 x 600 (Standard type)
Min strapping size (W x H) mm80 x 50
Strapping speed (sec/pass)<2.5
Strapping force (N)25-700 (adjustable)
Plastic strap used (mm)PP or PE strap
9-15mm in width
0.5-1.1mm in the thickness
Height of table (mm)750
External dimensions1400 x 620 x 1530
Net weight (kg)240
