Description:

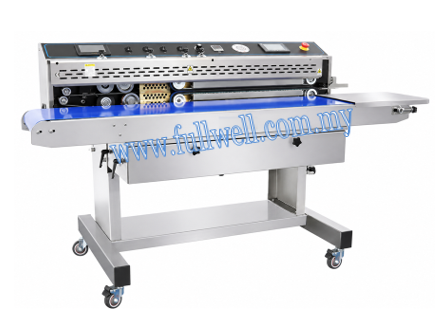

The CE-1120W/VS-1 is suitable for sealing medium to large bags that require air extraction or gas flushing.
It integrates air extraction, gas flushing, sealing, and inkjet coding in one machine.
The system features a touch screen for easy operation, multiple functions, and ensures a reliable sealing performance.
Features:
Parameters:
| Model | CE-1120W/VS-1 |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Motor Power (W) | 180 |
| Heating Power (W) | 400×2 |
| Speed (m/min) | 0-24 |
| Conveyor size（mm） | 1370 x 300 (LxW) |
| Seal Width（mm） | 10 |
| Distance from sealing center to product（mm） | 40 |
| Distance from sealing center to bag mouth（mm） | 38 |
| Overall conveyor load(kg) | 25 |
| External dimension（LxWxH）（mm） | 1370×660×960 |
Inkjet Printer Parameters
| Operating System | Linux |
| Size of Touch Screen(inch) | 5 inch |
| Touch Screen Resolution | 800×480 |
| Processor | Quad-core high-performance processor, main frequency up to 1.5GHz (fast response, smooth operation) |
| Memory | 1G＋4G |
| Printing nozzle | TIJ2.5 Hot foam nozzle |
| printing letter height | 1.5-12.7mm |
| Printing length | unlimited |
| Max. Printing line | 6 lines |
| Ink type and volume | oily/42ml |
| Ink Color | Black(standard) Optional: Red、Green、Blue、Yellow、White、Transparent |
| Printing material | suitable for any compound film material (special material needs customized ink) |
| Languages in Touch Screen | Chinese, English, Arabic, Turkish, Spanish, Portuguese, Korean, Russian (support customization) |
| Printing Content | Chinese, English, numbers, symbols, graphics, QR codes, barcodes, variable dates, variable counts, variable QR codes Chinese, English, Numbers, symbols, graphics (support arbitrary pictures without conversion format), QR code, bar code (custom content, real-time variable barcode), variable date (custom), a variable count (custom), variable QR code (real-time variable data printing system, online system are both customized) |
| Counting | 0-100000 |
| printing volume of ink cartridge | about 200,000 times (take the production date of height 4mm and length 30mm as an example) |
| Printing content storage | can store 200 pieces (each piece of printing content has a separate counting storage function) |
| Printing font | adjustable (font can be customized ) |
| External Terminal | USB、RS232 serial Terminal、WIFI |
